BRISTELL B23
B23 next-gen low-wing airplane by BRISTELL. Available now for Microsoft Flight Simulator 2020, with a study-level X-Plane 12 version planned.
Microsoft Flight Simulator 2020 · $24.99 · Study-level X-Plane 12 version planned
About
Airfoillabs is introducing the BRISTELL B23 for Microsoft Flight Simulator 2020 - you can already get your copy directly from the Microsoft Flight Simulator 2020 Marketplace for $24.99. For the long term, we plan a study-level version of this beauty for X-Plane 12, too.
BRISTELL is a Czech aircraft manufacturer which has produced more than 670 LSA aircraft worldwide. The B23 has been designed to satisfy the European CS23 / U.S. FAR23 certification basis.
While the airplane looks similar to the classic BRISTELL LSA, there are many new design changes applied. The fuselage is longer and the tail with an aluminum rudder is larger. The flaps and stabilizer are bigger and more efficient. The composite main landing gear legs have been redesigned completely to enable them to carry much heavier loads than previous Bristell models, and the aircraft’s handling characteristics are much improved too. In addition, the twin elevator trim tab greatly optimizes forces on the control stick.
The basic equipment includes a steerable nose wheel and a BRS ballistic parachute rescue system. The standard-equipped aircraft also meets the night-VFR requirements and can be upgraded to meet IFR requirements. It has a three-blade constant-speed propeller and the most spacious cockpit in its class.
The airplane’s maximum take-off weight of 750 kg and an empty weight of 450 kg offer you 300 kg of useful load. With a 120-liter fuel tank capacity, the BRISTELL B23 is a very good cruiser. The airframe is designed for long life and has a robust structure, which makes it particularly well-suited for flight training.
Features
Advanced Avionics as Standard
Two Garmin G3X Touch screens with Synthetic Vision, NAV/COM Garmin GNC255 radio, ADSB transponder GTX345 WAAS/GPS, Autopilot Garmin GMC 507 + LEVEL button, and L3 instruments.
Flight Schools
Easy operation thanks to excellent stability, outstanding stall characteristics, and rich aircraft instrumentation. Adjustable propeller for optimal use of power.
Flying for Fun
Enjoy high performance thanks to the combination of a ROTAX engine and MT propeller. Enjoy great views from the cockpit. Enjoy flying with speed and action - it is nimble and responds extremely well to aircraft control.
Travelling
Come fly with me, let’s fly away - you have a range of 600 NM! Pack even that thick book you haven’t got round to reading yet: you can take up to 55 kg of luggage on the plane. Fly in comfort at any time, even at night.

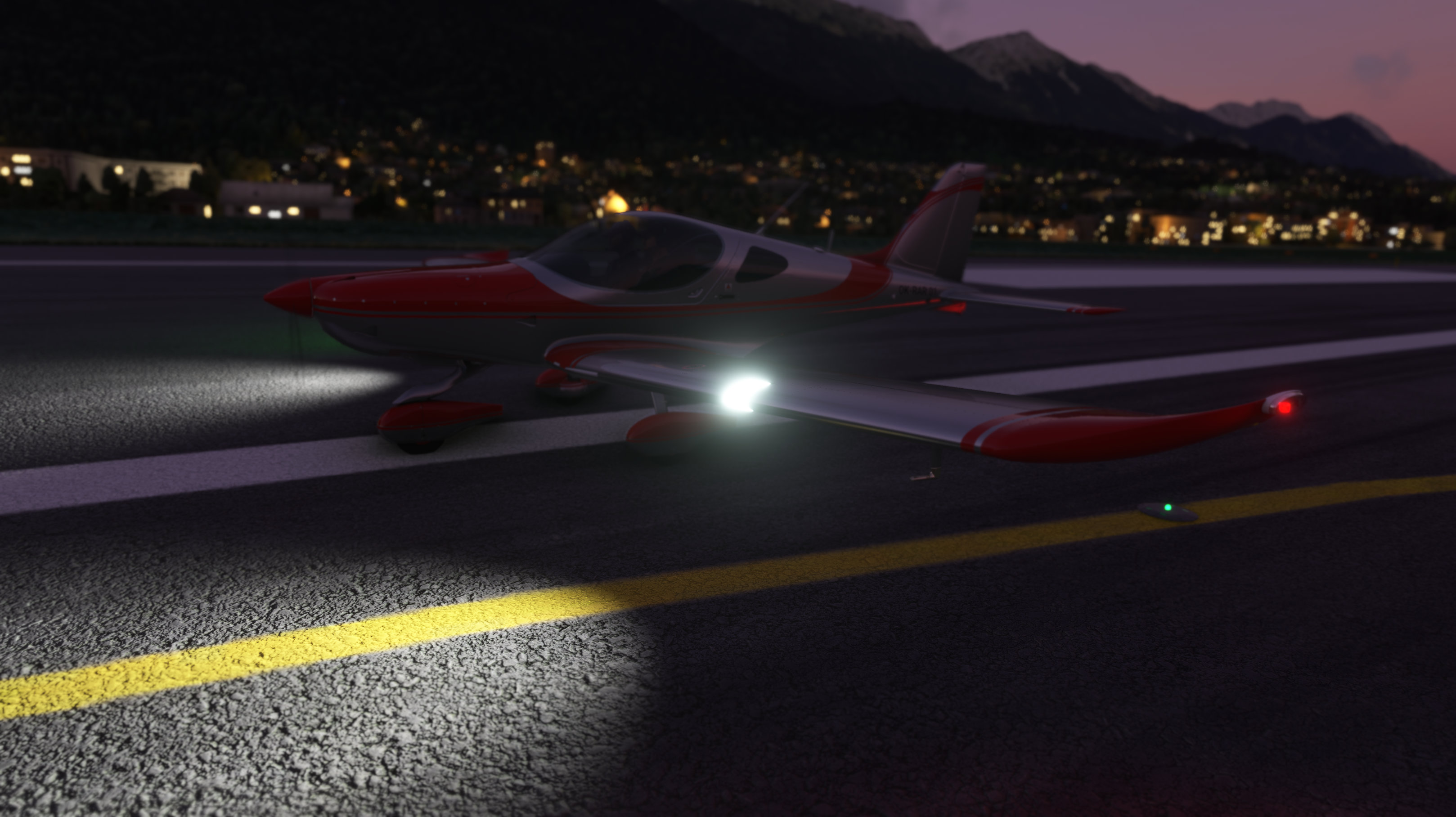

Fly Any Time, Even at Night
BRISTELL B23 is also certified for flying at night under VFR conditions. Enjoy a quiet night flight in a certified airplane with a dual glass cockpit and Garmin autopilot.
A Closer Look
Specifications
Dimensions
Wingspan 9.274 m · Wing area 11.75 m² · Wing loading 63.82 kg/m² · Aircraft length 6.585 m · Aircraft height 2.36 m · Cabin width 1.3 m
Weight
Empty weight 450 kg · Maximum take-off weight (MTOW) 750 kg · Useful load 300 kg · Fuel tanks capacity 120 l · Fuselage luggage compartment 15 kg · Wing luggage compartment 2 × 20 kg · Load factor +4/−2 g
Performance
Stall speed without flaps VS1 50 KCAS (MTOW 750 kg) · Stall speed with flaps VS0 43 KCAS (MTOW 750 kg) · Maneuvering speed VA 98 KCAS · Maximum flap speed VFE 81 KCAS · Maximum horizontal flight speed VH 117 KTAS · Never exceeded speed VNE 156 KCAS · Best rate of climb speed Vy (flaps retracted), MTOP 74 KIAS · Best rate of climb (flaps retracted), MTOP 700 ft/min · Best angle of climb speed Vx, MTOP 62 KIAS · Best rate of climb speed Vy (flaps 10°), MTOP 76 KIAS · Best rate of climb (flaps 10°), MTOP 634 ft/min · Take-off distance (ground roll) 365 m · Take-off distance over 15 m (50 ft) obstacle 479 m · Landing distance (ground roll) 146 m · Landing distance from 15 m (50 ft) height 391 m
Ready to Fly?
The BRISTELL B23 is available now for Microsoft Flight Simulator 2020 on the MSFS Marketplace for $24.99. A study-level X-Plane 12 version is planned for the long term.
